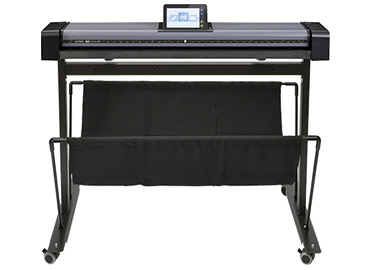

Contex SD One Large Format Scanner

Contex SD One Large Format Scanner
First Desktop Large Format Scanner
SD One is the first true desktop large format scanner with strong features. Save space and time scanning oversized engineering and construction drawings in-house.

The SD One is available in both 24 inch and 36 inch.

As-builts, documentation and rebuilt
All projects include numerous design documents and continuous changes. With SD One you capture and document changes and as-builts.

Space-saving and light weight
SD One’s lightweight and compact design make it a must-have scanner for any office that wants to share and move a scanner between multiple users or store it when it is not required.

Capture all your document types
Scan and document all your engineering or construction plans in standard file formats directly into your project folders.

Cloud Enabled
The SD One can send documents directly to your preferred destinations.

The Contex SD One Large Format Scanner Features:
The SD One scanner is designed to be used by you right on your desk with 6 key features in mind. The objective has been to create a wide format scanner like no other. Focusing on 6 key features has enabled us to design a unique product that enables you to scan as-builts and other design changes right when you need them.

USB:
Using a standard USB connection enables connection to any PC or laptop. Simply install the scanning application that comes with the scanner and connect it to your PC. You may install the scanner on as many PC's as you like. The size and weight of the SD One enables you to keep it right at your desk. You may also choose the optional stand and store the scanner when not in use. The SD one scanner is designed for Windows 8, 7 and Vista.

3 Times Lighter:
Lightweight and powerful. By using new materials and methods we have designed a product that is 3 times lighter than any other equivalent scanner in the market. The light weight and powerful design means it is easy to move and store when not required. You can simply bring the scanner to where you need to scan rather than bringing all the documents to the scanner.

Cloud:
The Cloud enabled SD One scanner can send documents directly to your preferred destinations. The only choice you have to make is where you need the documents - SD One handles the rest. SD One can deliver images by e-mail or directly into your cloud sharing and storing applications. There is a long list of supported Cloud destinations like DropBox, Box.com, Google Drive and many more.

Full Color:
Most wide format documents contains color information that makes changes and other important information easy to understand. The SD One supports full color scanning and can color JPG, TIF or PDF files. For smaller files the SD One also supports scanning in black and white or grayscale. You may also choose to upgrade the FREE software and benefit from even smaller color files by using Index Color. Upgrade to Nextimage REPRO and gain full color support like ICC workflow and copy functionality.

Two Sizes:
Most wide format documents contains color information that makes changes and other important information easy to understand. The SD One supports full color scanning and can color JPG, TIF or PDF files. For smaller files the SD One also supports scanning in black and white or grayscale. You may also choose to upgrade the FREE software and benefit from even smaller color files by using Index Color. Upgrade to Nextimage REPRO and gain full color support like ICC workflow and copy functionality.

PDF and PDF/A:
SD One supports standard document formats like PDF and PDF/A. These are formats that can be opened and printed in scale using the free Adobe Reader. With PDF/A you even benefit from a format that is protected from changes and designed for long time storing. We recommend PDF/A for storing your as-builds and documentation. For sharing and collaboration use standard PDF as this enables highlighting and annotations.

Contex SD One Large Format Scanner
  SD One 24 SD One 36
Maximum Scan Width 24 inch (610 mm) 36 inch (914 mm)
Maximum Media Width 26.6 inch (675mm) 40 inch (1014mm)
Weight & Dimensions 8.5 kg 819x230x124 mm 11.3 kg 1158x230x124 mm

Scan speed (inch/sec) color and monochrome while scanning 24" document 1)
150 dpi 3.8
300 dpi 1.9
600 dpi 1.0

Optical Resolution 600 dpi
Maximum Resolution 600 dpi
Scanning Technology Contex Dynamic CIS
Contex CFR 2) Yes
Maximum Media Thickness 0.03 inch / 0.75mm
Accuracy 0.3% +/- 1 pixel
Data Capture (color/mono) 48-bit
Color Space sRGB (24 bit) / Grayscale (8 bit) / Monochrome (1 bit)
Connectivity USB with xDTR
Energy Star compliant Yes

Software 3) AutoCAD® , Microstationtm, ArcGIStm and all other CAD, GIS and other image editing / storage applications
Device Drivers 32 and 64-bit Windows 8, 7 and Vista
Scanning Software Nextimage FREE basic scanning software included with the scanner.
Designed for easy creation of TIF, JPG, PDF or PDF/A files and integration with Cloud destinations like Google Drive, Box.com, Dropbox etc.
Nextimage TWAIN 32-bit TWAIN application driver included for use with EDM and other imaging software
Upgradable scanning software Nextimage Scan+Archive. Full featured scanning software incl. multipage (PDF, PDF/A and TIF) and full image quality controls.
  Nextimage Repro. Full featured scanning / copying software incl. build-in printer drivers and full color control.
Power Consumption (Ready / Power Save / Scanning) 5.5/0.5/14 W, ENERGY STAR© Certified
Power Requirements External power supply 100-240V, 60/50Hz, 16W

Certification and Warranty
Safety IEC 60950. Certificates: cUL (USA and Canada), CE (Europe), CCC (China), PSE (Japan), EAC (Russia, Kazakhstan, Belarus),
KC (Korea), BSMI (Taiwan), UKR (Ukraine) and BIS (India)
Electro Magnetic Compatibility (EMC) Compliant with Class A requirements, including FCC rules (USA), ICES (Canada), EMC Directive (EU), CCC (China), VCCI (Japan), EAC (Russia, Kazakhstan, Belarus), KC (Korea), BSMI (Taiwan), UKR (Ukraine) and BIS (India)
Enviromental ENERGY STAR© Certified, EuP (EU), WEEE (EU), RoHS (EU) and REACH (EU)
Country of Origin Denmark, EU
Warranty 2-year warranty and fast, easy parts replacement
What’s in the box Scanner (24” or 36” model), 2 m USB cable, external power supply, basic scanning software (Nextimage FREE), installation software and user guides in PDF on USB flash drive, installation guide, calibration poster, calibration sheet and cleaning cloth.

1) Scanning speeds depend on document width and computer configuration
Contex recommends Intel Core Duo, Core 2 Duo, or better processors, 2GB RAM, Hi-speed USB2.
Speed tests performed using Nextimage software, PC with Intel Core i5-2500 Quad processor, 8GB RAM, Hi-speed USB2, 7200rpm HDD, Windows 7 64-bit Ultimate.

2) Color Fringe Removal (CFR) is a Contex Patent. Color Fringing is a natural consequence of CIS technology sequentially flashing R-G-B. Thanks to Contex innovative thinking CFR will remove this problem with advanced filter technology.

3) Contex applications creates industry standard raster file formats that can be used in any CAD or GIS application.

All trademarks remain the property of their respective holders, and are used only to directly describe the product being provided. Their use in no way indicates any relationship between Contex A/S and the holders of the said trademarks.


Printer Model: Contex SD One
Contact Us For Pricing


View Details PDF
