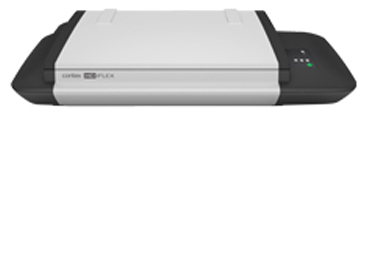

Contex HD iFlex Large Format Scanner

Contex HD iFlex Large Format Scanner
Large format flatbed scanner for creativity and productivity without compromise
The large flatbed surface, fast scanning speeds and ultra flexible design makes the HD iFLEX the perfect solution for the demanding user. Protect fragile originals by placing them gently on the scanner bed or utilize the flexibility to scan books, textile, wood, original artwork or anything you would like to transform into digital content. The HD iFLEX is the most flexible A2/C-size flatbed in the market and can even scan up to A1/D-size documents.

The Contex HD iFlex Scanner Features:
- Ultra-fast one touch scanning
- Scan the entire image in just 4 sec
- Single camera with full 600 x 600 optical resolution and true optical lenses for market leading results
- Get more: Scan up to A1/D-size document on an A2/C-size flatbed scanner
- Unrestricted design. Scan with lid closed, lifted, open or removed
- USB and Gigabit Ethernet with xDTR2

Flexible design means endless opportunities
Combine materials like never before. You can place anything on the scanner bed and let the HD iFLEX do the scanning. The HD iFLEX supports scanning any shape or size and can be used to scan original artwork, create product catalogs or make digital archives of your most fragile originals.

Up to A1/D-size originals
A simple guide in Nextimage will help scanning documents twice the size of the scan bed. Simply place the documents and follow the guide. This truly makes the HD iFLEX an A1 scanner in a A2 size.

Book scanning at very reasonable cost
The Contex HD iFLEX gives you a very beneficial ROI, keeping the outstanding, renowned Contex CCD quality.

When the image is a shape – light is the solution
Shadows are normally unwanted when scanning originals with folds and other shapes. The iFLEX scanner has ultra-bright LED light that best emulates natural light in a flatbed design and eliminates unwanted shadows in your originals. When scanning shapes, like brail, carvings or plants, the light source is carefully designed to capture the shadows that make up the shapes of the objects. We call this Natural Light.

Quality is a brand promise
The HD iFLEX’s high color fidelity can be delivered in Adobe RGB, sRGB or even RAW RGB in full 48-bit color. Combined with true camera optics, a single 4-channel CCD in full 600 x 600 dpi optical resolution the HD iFLEX will capture every detail right every time.

Imagination is the only limit
The large flatbed surface provides flexibility like never before. Scan up A2/C-size originals of any size or shape – or scan documents up to A1/D-size. The flatbed surface is unrestricting and supports originals in unlimited thickness. You can even place multiple items and scan them into single or multipage image files using our award winning Nextimage software.

PageDrop Enabled
PageDrop enabled HD iFLEX scanners can send documents directly to your preferred destinations. PageDrop does not require a PC. Instead it simply utilizes your smart phone or tablet to control the process. Load the document, scan the QR code, and send the document directly to your desired destination with the iFLEX large format flatbed scanner.



Contex HD iFLEX Large Format Scanner
Optical Resolution 600dpi
Maximum Resolution 9600dpi
Scan Area 18 x 24” (457 x 610 mm)
Maximum Image Size1 24 x 36” (610 x 914 mm)
Scanning Speed2 (sec.):
200 dpi RGB Color Full scan bed in 4 seconds
200 dpi Grayscale / Monochrome Full scan bed in 4 seconds
Total number of Pixels 42720 pixels
CCD Camera 1 x 4 linear color CCD's (R,G,B and Gray)
Maximum Media Thickness Unlimited
Accuracy 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit / 16-bit
Full 48-bit Data Workflow Yes
Color Space Adobe RGB / Device RGB / RAW RGB / sRGB
USB and Gigabit Ethernet with xDTR2
Network workflow Pull / Push
SmartShare
ALE
AccuColor
ENERGY STAR Certified Yes
Software4 AutoCAD® , Microstationtm, ArcGIStm and all other CAD, GIS and other image editing / storage applications
Fileformats5 TIF, JPG, PDF, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Device Drivers 32 and 64-bit Windows 8, 7 and Vista
Nextimage TWAIN 32-bit TWAIN application driver included for use with EDM and other imaging software
Power Requirements 100 - 240V, 60/50Hz, 80W
Power Consumption
(Ready / Power Save / Scanning)
18W / <2.5W / 45W – ENERGY STAR certified
Weight and Dimensions  34 kg, LxWxH: 50 x 25 x 9” (128 x 63 x 22 cm)
Certifications/compliance RoHS, cUL, CE, COSTUMS-UNION, CCC, VCCI, KC, BSMI, Ukr, ENERGY STAR Certified


1) Software stitched. Requires multiple scans.
2) Scanning speeds depend on computer configuration.
Contex recommends Intel Core Duo, Core 2 Duo, or better processors, 2GB RAM, Hi-speed USB2.
Speed tests performed using Nextimage software, PC with Intel Core i5-2500 Quad processor, 8GB RAM,
Hi-speed USB2, 7200rpm HDD, Windows 7 64-bit Ultimate.
3) Bit depth for: Data Capture / Scanner Processing / PC Processing / Image File. Create a optional 48-bit TIFF image
4)  Contex applications creates industry standard raster file formats that can be used in any CAD or GIS application.
5) Requires optional Nextimage software
All trademarks remain the property of their respective holders, and are used only to directly describe the product being provided. Their use in no way indicates any relationship between Contex A/S and the holders of the said trademarks.Contex applications creates industry standard raster file formats that can be used in any CAD or GIS application.
2) Scanning speeds depend on document width and computer configuration. Contex recommends Intel Core Duo, Core 2 Duo, or better processors, 2GB RAM, Hi-speed USB2. Speed tests performed using Nextimage software, PC with Intel Core i5-2500 Quad processor, 8GB RAM,Hi-speed USB2, 7200rpm HDD, Windows 7 64-bit Ultimate.
All trademarks remain the property of their respective holders, and are used only to directly describe the product being provided.
Their use in no way indicates any relationship between Contex A/S and the holders of the said trademarks.


Printer Model: Contex HD iFlex
Contact Us For Pricing


View Details PDF
